Series classification
FY108S Digital multimeter

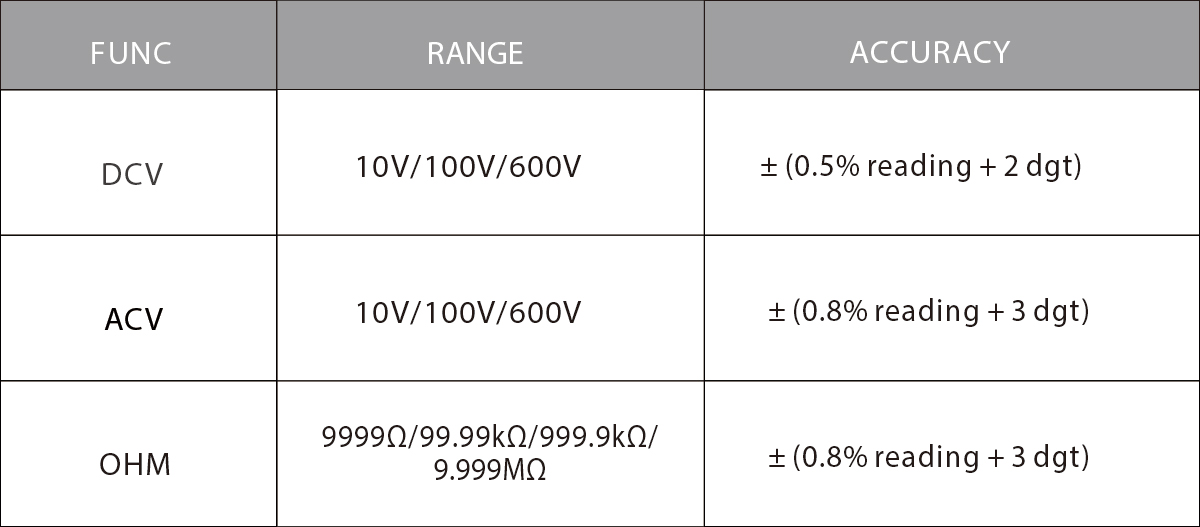

SPECIFICATIONS
Working environment temperature and humidity:
0~40 ℃ (<80% RH, not considered when <10℃).
Storage environment temperature and humidity:
-10~60 ℃ (<70% RH, remove the battery).
Temperature coefficient: 0.1 accuracy/ ℃
(<18 ℃ or >28 ℃).
The maximum allowable voltage between the measuring
terminal and the ground: 600V DC or 600V AC RMS
Conversion rate: about 3 times/sec
Display: 9999 counts LCD display
Low battery indication: LCD displays "
" symbol
Power supply: 2 x 1.5V AAA batteries
Dimensions: 121x61x31mm
Weight: about 113g (without batteries).
- Parameters
SPECIFICATIONS
Working environment temperature and humidity:
0~40 ℃ (<80% RH, not considered when <10℃).
Storage environment temperature and humidity:
-10~60 ℃ (<70% RH, remove the battery).
Temperature coefficient: 0.1 accuracy/ ℃
(<18 ℃ or >28 ℃).
The maximum allowable voltage between the measuring
terminal and the ground: 600V DC or 600V AC RMS
Conversion rate: about 3 times/sec
Display: 9999 counts LCD display
Low battery indication: LCD displays " " symbol
Power supply: 2 x 1.5V AAA batteries
Dimensions: 121x61x31mm
Weight: about 113g (without batteries).
