FY531 1500A AC Clamp Meter

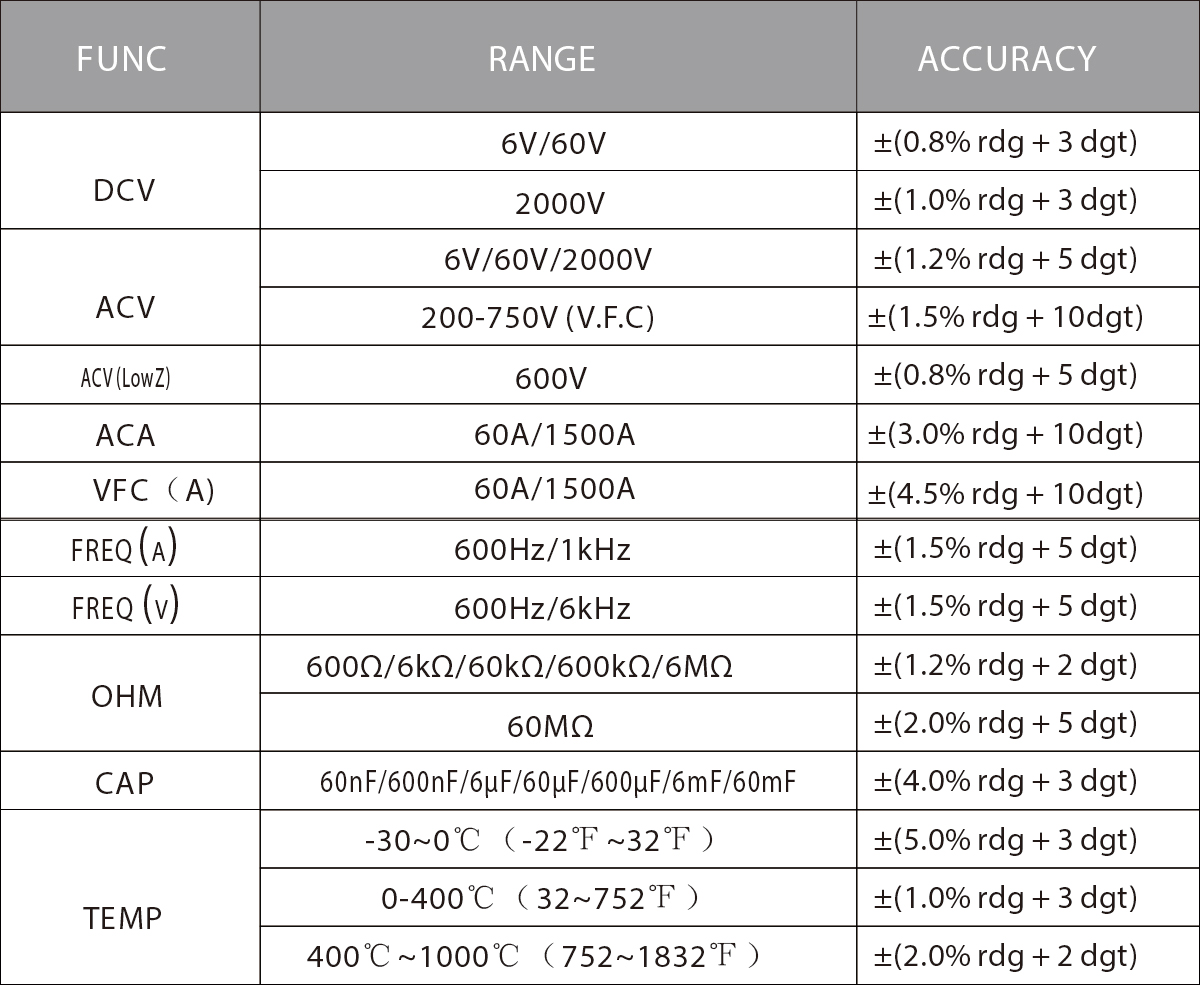

SPECIFICATIONS
Maximum permissible voltage between measuring
terminal and earth
2000 V DC or 2000 V AC RMS
3000A flexible CT; the output signal is the differential
of the current to time, by integrating the output voltage
By integrating the output voltage signal, the input
current can be truly restored.
Sampling rate: about 3 times / second
Display: 5999 bit double display colour screen.
Over-range indication: LCD will show "OL" or - "OL".
Battery Low Voltage Indication: When the battery voltage
is lower than the normal working voltage
will be shown on the LCD display.
Input polarity indication: "-" is automatically displayed.
Power supply: AAADC1.5VX3 sections
Dimensions:250x85x39mm
Weight:Approx. 193g (without battery)
Maximum jaw opening size:40mm
- Parameters
SPECIFICATIONS
Maximum permissible voltage between measuring
terminal and earth
2000 V DC or 2000 V AC RMS
3000A flexible CT; the output signal is the differential
of the current to time, by integrating the output voltage
By integrating the output voltage signal, the input
current can be truly restored.
Sampling rate: about 3 times / second
Display: 5999 bit double display colour screen.
Over-range indication: LCD will show "OL" or - "OL".
Battery Low Voltage Indication: When the battery voltage
is lower than the normal working voltage
will be shown on the LCD display.
Input polarity indication: "-" is automatically displayed.
Power supply: AAADC1.5VX3 sections
Dimensions:250x85x39mm
Weight:Approx. 193g (without battery)
Maximum jaw opening size:40mm
FEATURES
Full protection, anti-high-voltage ignition circuit design, streamlined design, high-definition dual-display screen, small body and jaws suitable for hand-held as well as reaching into the precisearea, low impedance voltage test, true RMS test, clamp head frequency measurement, large capacitance 60mF, temperature test, automatic shutdown, NCV test, torch illumination, inrush current, VFC current,
low-voltage displayLuminance, inrush current, VFC current, low voltage display, data hold, etc.
