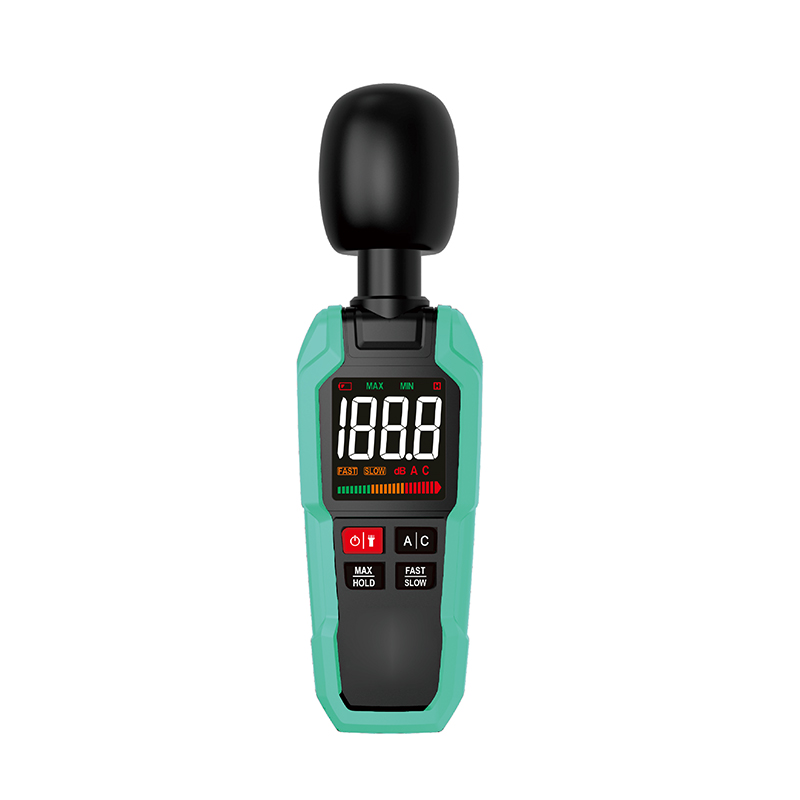

FY8813 Digital Sound Level Meter
SPECIFICATIONS
● sound pressure accuracy: ± 1.5 db
(sound pressure standard, 94 DB@1 khz) .
● sound pressure accuracy: ± 5 db
(sound pressure standard, 94 db@8 khz) .
● sound pressure frequency response: 30 HZ-8 khz.
● sound pressure measurement range: 30-130 dba, 35-130 DBC.
● frequency-weighted characteristics of sound pressure: A and C
characteristics.
● sound pressure dynamics: Fast 125MS, SLOW 1SEC
● microphone: polarized capacitive microphone.
● display: 0.1 db
● AUTOMATIC SHIFT: the microcomputer
automatically selects the best measuring gear
in the range of 30.130 db.
Tips below or beyond the limit: use“UN”
and“OL”, characters.
● power supply: 1.5V X 3 AAA
Working Temperature: 0 ° C ~ + 40 ° C.
Working Humidity: 10-80% Rh.
● storage temperature: -10 ° C ~ + 50 ° C.
● Storage Humidity: 10-70% Rh.
Size: 185(long) × 60(wide) × 30(high) mm.
● weight: about 162 grams (without batteries) .
- Parameters
SPECIFICATIONS
● sound pressure accuracy: ± 1.5 db
(sound pressure standard, 94 DB@1 khz) .
● sound pressure accuracy: ± 5 db
(sound pressure standard, 94 db@8 khz) .
● sound pressure frequency response: 30 HZ-8 khz.
● sound pressure measurement range: 30-130 dba, 35-130 DBC.
● frequency-weighted characteristics of sound pressure: A and C
characteristics.
● sound pressure dynamics: Fast 125MS, SLOW 1SEC
● microphone: polarized capacitive microphone.
● display: 0.1 db
● AUTOMATIC SHIFT: the microcomputer
automatically selects the best measuring gear
in the range of 30.130 db.
Tips below or beyond the limit: use“UN”
and“OL”, characters.
● power supply: 1.5V X 3 AAA
Working Temperature: 0 ° C ~ + 40 ° C.
Working Humidity: 10-80% Rh.
● storage temperature: -10 ° C ~ + 50 ° C.
● Storage Humidity: 10-70% Rh.
Size: 185(long) × 60(wide) × 30(high) mm.
● weight: about 162 grams (without batteries) .
