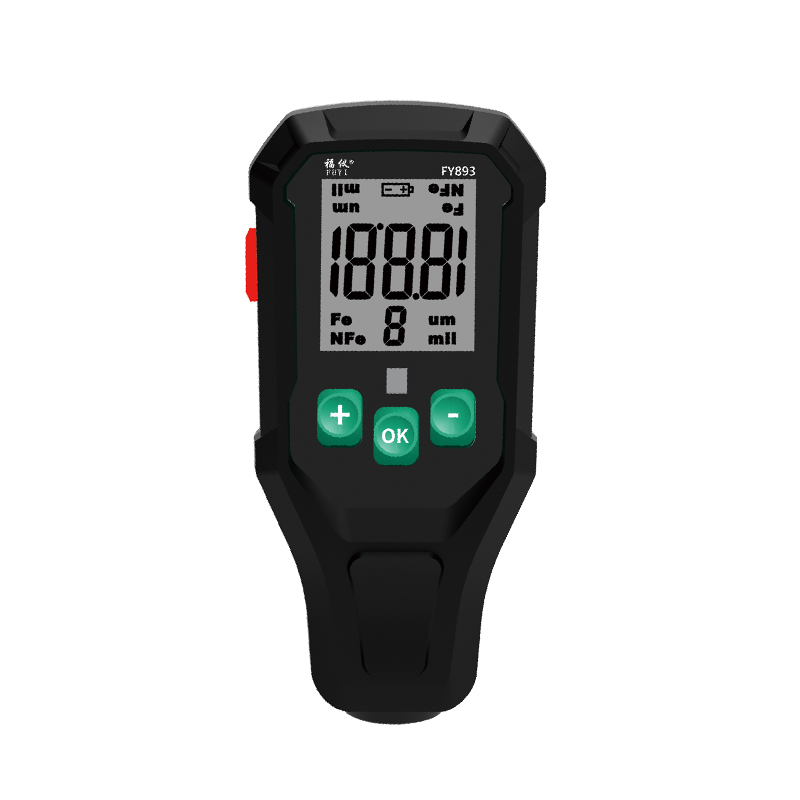

FY893 Coating Thickness Gauge
SPECIFICATIONS
Measuring range:0~1350um;0~50mil
Tolerance:±(3% reading+2u);(3% reading+ 0.08mil)
Resolution:1um/0.1mil
Measuring unit: um micron mil mil
Calibration point: Oum, 50um, 100um, 250um.
500um, 1000um, 1250um
Minimum radius of curvature (convex): 1.5mm
Minimum radius of curvature (concave): 25mm
Minimum measurement area (diameter): 6mm
Minimum thickness of measurable substrate:
0.5mm (0.02)-0.3mm (0.012)
Over-range display: "---"
Automatic shutdown: no operation for 3
minutes after the machine
automatically shut down
Operating temperature and humidity:
0°C~40°C(32°F~104°F);20%~90%RH;
no strong magnetic field
Power supply: AAA 1.5V*2
Main unit size: 129X58X29mm
Weight: 83g (without battery)
- Parameters
SPECIFICATIONS
Measuring range:0~1350um;0~50mil
Tolerance:±(3% reading+2u);(3% reading+ 0.08mil)
Resolution:1um/0.1mil
Measuring unit: um micron mil mil
Calibration point: Oum, 50um, 100um, 250um.
500um, 1000um, 1250um
Minimum radius of curvature (convex): 1.5mm
Minimum radius of curvature (concave): 25mm
Minimum measurement area (diameter): 6mm
Minimum thickness of measurable substrate:
0.5mm (0.02)-0.3mm (0.012)
Over-range display: "---"
Automatic shutdown: no operation for 3
minutes after the machine
automatically shut down
Operating temperature and humidity:
0°C~40°C(32°F~104°F);20%~90%RH;
no strong magnetic field
Power supply: AAA 1.5V*2
Main unit size: 129X58X29mm
Weight: 83g (without battery)
